Product Description

1. Professional-Grade Underground Plug-in Folding Football Goal




   This goal meets professional standards, featuring an underground plug-in installation structure that balances stability and flexibility.

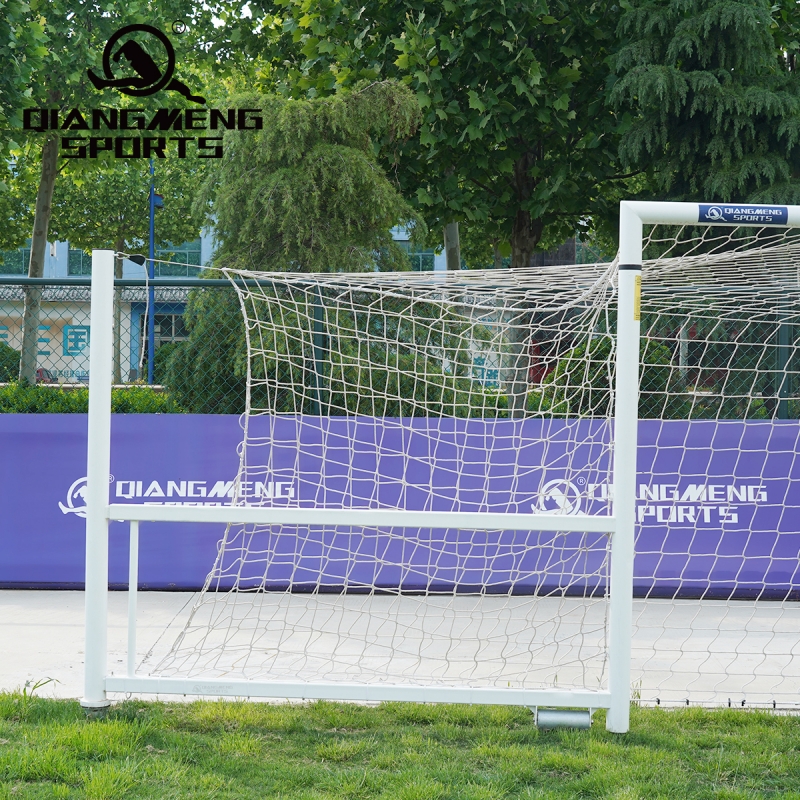

2. Left-Right Telescopic Frames




   The frames on both sides are telescopic, making it an ideal choice for multi-functional courts that require adaptable setups.

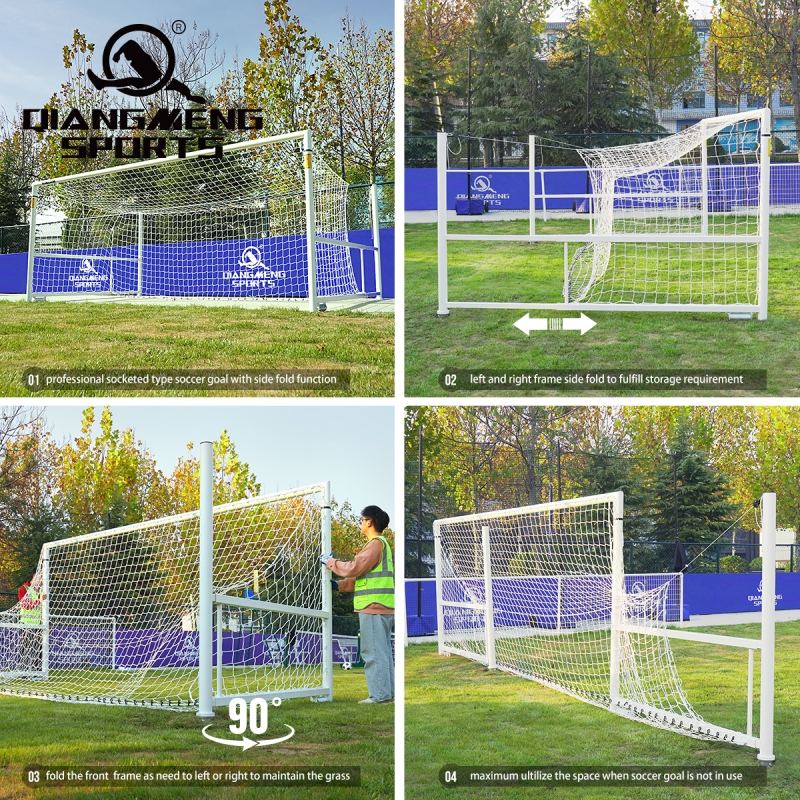

3. 90° Easy Folding via Side Push-Pull




   By pushing or pulling the goal frame horizontally, it can be folded at 90° with minimal effort, freeing up a larger area of the court for other uses.

4. Space-Saving & Lawn Maintenance Convenience




   When folded, the goal reduces space occupation significantly, facilitating lawn maintenance tasks (e.g., mowing and irrigation) during idle periods.

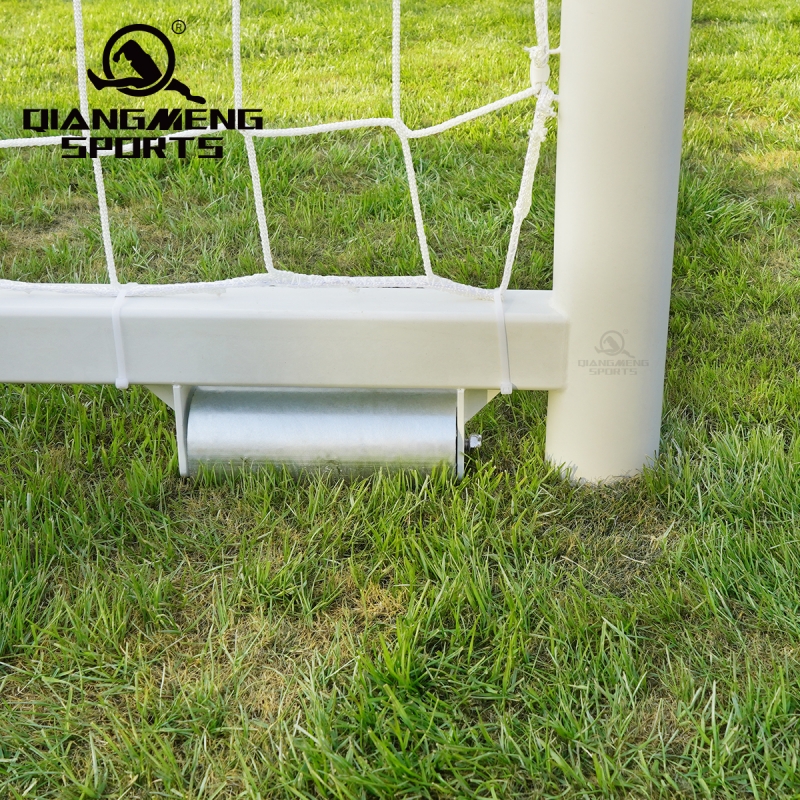

5. High-Strength Pressure Bearings & Enlarged Contact Area Rollers




   Equipped with heavy-duty pressure bearings and rollers designed to maximize contact area, the goal ensures smooth operation by minimizing friction during folding and unfolding.

Technical Specifications

Net Weight

• Single goal: 142kg

• Pair (set): 284kg

Goal Size

• Metric: 5.0m x 2.0m

• Imperial: 16.5ft x 6.5ft

Depth

• Top: 2m

• Bottom: 2m

Gross Weight

• Single goal: 150kg

• Pair (set): 300kg

Mobility

• Folding: Left-right folding design

Surface Treatment

• Shot blasting & powder coating

Main Pipe Specifications

• Diameter: φ89 steel pipe

• Wall thickness: 2.0mm

Height Adjustment

• Adjustable: Yes

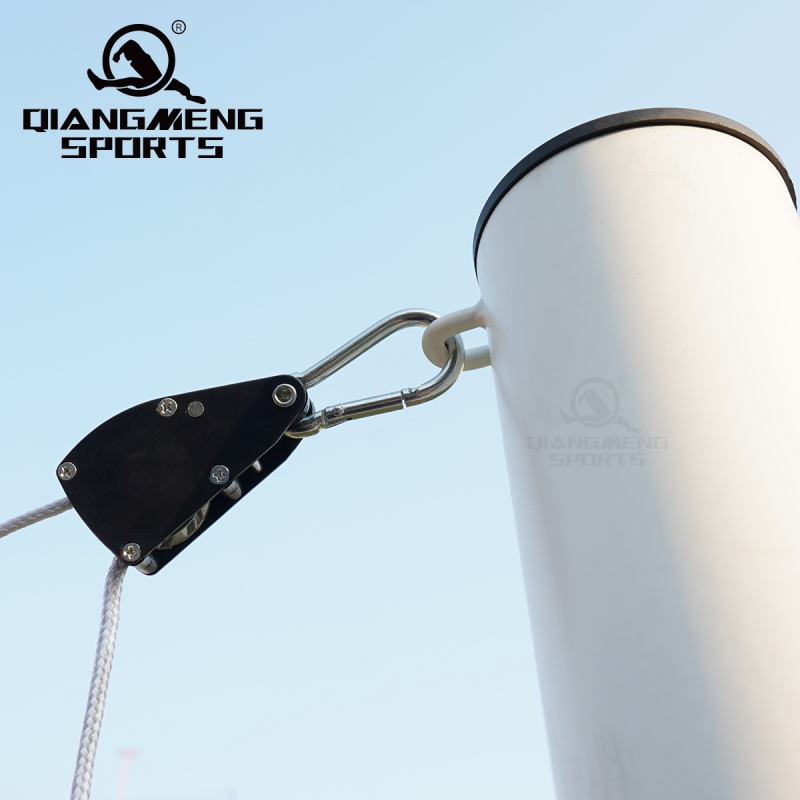

• Method: Rear net support rods with height limiters

Wheel Specifications

• Material: Galvanized steel

• Size: φ89 rollers

Net Specifications

• Material: 5mm thick braided HDPP (high-density polypropylene)

• Features: 100mm knotless mesh

Support Column Specifications

• Size: φ89 steel pipe

Back Pipe Specifications

• Outer: 60x60mm

• Inner: 50x50mm
