3 Rows 7.5ft Double Footboards Aluminum Bleachers Tip N Roll (QMB-A308ML2）
- The seat board, foot panels, and foot baffles are all made from 6061-T6 aluminum alloy through extrusion and subsequent anodic oxidation and sandblasting processes, this material is superior to the mainstream products of 6063-T5 on the market.
- All connections are made using galvanized bolts and flange nuts, effectively resisting corrosion and preventing bolt and nut loosening.
- Made entirely of aluminum alloy, it is lightweight and environmentally friendly.
- Its simple structure makes installation and disassembly easy.
- Polyurethane casters and mats effectively prevent damage to the floor.
Contact Us: qmtyvip@gmail.com
Aluminum made
Aluminum made frame and planks for seats and feet, anodized treatment without rust concern
Easy storage design at vertical position
Bleachers will store at vertical position and will maximum save space. aluminum frame and planks make the whole unit not heavy. this product will easily turn over and store with one person effort.
portable function with wheels
Tip N Roll features with caster/wheels which make the movement easily within sports field indoors and outdoors as need. each wheel has brake so when it locks, the wheels will store sturdy on ground.
| MODEL | ROWS | LENGTHS | SEATS | FOOTBOARD | WEIGHT | DOWNLOAD | ||
|
QMB-A208ML2 |
2 |
7.5'（2.3m） |
10 |
Dual |
45kg |
ADD TO QUOTE | |
|
QMB-A308ML1 |
3 |
7.5'（2.3m） |
15 |
Single |
59kg |
ADD TO QUOTE | |
|
QMB-A308ML2 |
3 |
7.5'（2.3m） |
15 |
Dual |
75kg |
ADD TO QUOTE | |
|
QMB-A309ML1 |
3 |
9’（2.75m） |
18 |
Single |
67kg |
ADD TO QUOTE | |
|
QMB-A312ML1 |
3 |
12’（3.66m） |
24 |
Single |
92kg |
ADD TO QUOTE | |
|
QMB-A315ML1 |
3 |
15'（4.6m） |
30 |
Single |
108kg |
ADD TO QUOTE | |
|
ADD TO QUOTE |
FEEL CONFIDENT IN OUR SUPERIOR STRENGTH SAFETY AND RELIABILITY!
Movable bleachers description:

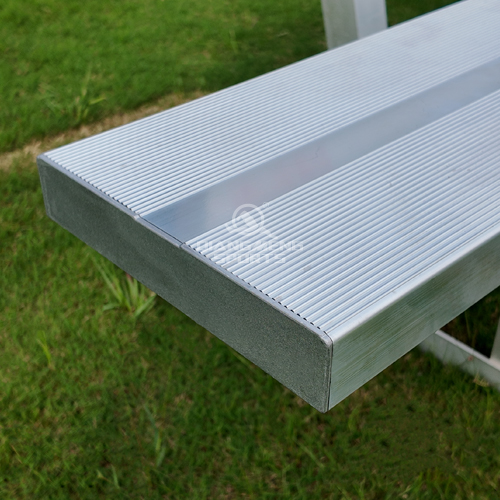

The movable bleacher uses L-shaped aluminum profiles made of 6063-T5 material with a thickness of 5mm, welded into the bottom frame. The seat boards are made from 1-3/4" × 9-1/2" size 6061-T6 aluminum alloy extrusion. The foot panels can be selected from 2 to 3 pieces of 1" × 6" 6061-T6 aluminum alloy extrusion small foot panels or 1 to 2 pieces of 1-3/4" × 9-1/2" 6061-T6 aluminum alloy extrusion large foot panels. The end caps are connected by blind rivets. The surfaces of the seat board, foot panels, and end cap are all treated with anodic oxidation process. The rear is equipped with 4-inch diameter universal dual-brake caster wheels made of polyurethane, and the base is equipped with polyurethane pads that can easily tilt the bleacher to an upright position. After use, only push the bleacher to its storage site to save space.
Movable Bleacher Features:
2, 3, 4 rows
17" the height of the front row seat
1-3/4" × 9-1/2" seat board size
Length: 7.5', 9', 12', 15', 21'
Capacity: 10-56 people
The material of the seat and the foot panels: 6061-T6
6063-T5 aluminum alloy base frame
Polyurethane pads and universal brake caster made of polyurethane
Movable bleachers Highlights:
· The seat board, foot panels, and foot baffles are all made from 6061-T6 aluminum alloy through extrusion and subsequent anodic oxidation and sandblasting processes, this material is superior to the mainstream products of 6063-T5 on the market.
· All connections are made using galvanized bolts and flange nuts, effectively resisting corrosion and preventing bolt and nut loosening.
· Made entirely of aluminum alloy, it is lightweight and environmentally friendly.
· Its simple structure makes installation and disassembly easy.
· Polyurethane casters and mats effectively prevent damage to the floor.
Cautions:
· Pay attention to safety during installation to avoid cuts or bumps.
· Do not install in wet or flooded areas to avoid affecting the bleachers’ performance and lifespan.
· In case of strong winds, heavy rain, or other severe weather conditions, please take immediate measures to secure it for safe use.
Application Scenarios:
Indoor temporary audience seating at stadiums, schools, community centers, etc.
FEEL CONFIDENT IN OUR SUPERIOR STRENGTH SAFETY AND RELIABILITY!
Movable bleachers description:
The movable bleacher uses L-shaped aluminum profiles made of 6063-T5 material with a thickness of 5mm, welded into the bottom frame. The seat boards are made from 1-3/4" × 9-1/2" size 6061-T6 aluminum alloy extrusion. The foot panels can be selected from 2 to 3 pieces of 1" × 6" 6061-T6 aluminum alloy extrusion small foot panels or 1 to 2 pieces of 1-3/4" × 9-1/2" 6061-T6 aluminum alloy extrusion large foot panels. The end caps are connected by blind rivets. The surfaces of the seat board, foot panels, and end cap are all treated with anodic oxidation process. The rear is equipped with 4-inch diameter universal dual-brake caster wheels made of polyurethane, and the base is equipped with polyurethane pads that can easily tilt the bleacher to an upright position. After use, only push the bleacher to its storage site to save space.
Movable Bleacher Features:
2, 3, 4 rows
17" the height of the front row seat
1-3/4" × 9-1/2" seat board size
Length: 7.5', 9', 12', 15', 21'
Capacity: 10-56 people
The material of the seat and the foot panels: 6061-T6
6063-T5 aluminum alloy base frame
Polyurethane pads and universal brake caster made of polyurethane
Movable bleachers Highlights:
· The seat board, foot panels, and foot baffles are all made from 6061-T6 aluminum alloy through extrusion and subsequent anodic oxidation and sandblasting processes, this material is superior to the mainstream products of 6063-T5 on the market.
· All connections are made using galvanized bolts and flange nuts, effectively resisting corrosion and preventing bolt and nut loosening.
· Made entirely of aluminum alloy, it is lightweight and environmentally friendly.
· Its simple structure makes installation and disassembly easy.
· Polyurethane casters and mats effectively prevent damage to the floor.
Cautions:
· Pay attention to safety during installation to avoid cuts or bumps.
· Do not install in wet or flooded areas to avoid affecting the bleachers’ performance and lifespan.
· In case of strong winds, heavy rain, or other severe weather conditions, please take immediate measures to secure it for safe use.
Application Scenarios:
Indoor temporary audience seating at stadiums, schools, community centers, etc.
